High-Voltage Battery System Lithium Battery System: BHF-S10/S15/S20/S25/S30
High-Voltage Battery System Lithium Battery System: BHF-S10/S15/S20/S25/S30
Specification

Nominal Voltage
204.8 V
Number of Modules
2
Total Energy
10.2 kwh
Usable Energy
9.2 kwh
Nominal Power
5.1 kW
Max. Charge/Discharge Current
48 A
Dimension (W*H*D)
870*878.5*208.7 mm
Weight
147 kg
Ingress Protection
IP65

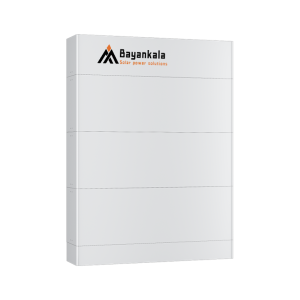

The Bayankala BHF HV Battery System is ideal for new installation of residential energy storage system.
With high energy density, high efficiency, modular stacking design and IP65 rating, BHF series battery is space-saving for indoor and outdoor installation. Up to 30 kWh system can fit your high energy demand.

Applicable Scenarios
