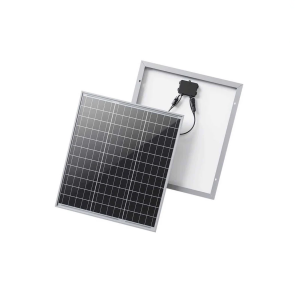

50W 18V Solar panel
50W 18V Solar panel
Bayankala's 50W 12V Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, house door light and many other small off-grid applications.
Specification

50 Watt Solar Panel

Description

Features

  • 12V off-grid solar panel.
  • 0~+5W guaranteed positive power output.
  • IP 65 or IP 67 rated.
  • Built with strong tempered glass and aluminum frame.
  • Certified to withstand challenging environmental conditions.

Installation

  • Easy installation and handling for various applications.
  • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
  • Compatible with on-grid and off-grid inverters.

Warranty

  • 5-year workmanship warranty

Built-in Components

  • Panel Leads (Pair): 12AWG 2FT
  • IP65 Rated waterproof junction box
  • IP67 Rated waterproof solar connectors

Specifications:

Model Type BK-M50
Maximum Power (Pmax) 50W
Maximum Power Voltage (Vmp) 17.1V
Maximum Power Current (Imp) 2.92A
Open Circuit Voltage (Voc) 20.1V
Short Circuit Current (Isc) 3.22A
Maximum System Voltage (Vmax) 1000VDC
Maximum Series Fuse Rating 10A
Weight 7.5 lb
Dimensions 22.8 in x 20.5 in x 1.2 in
Applicable Scenarios
