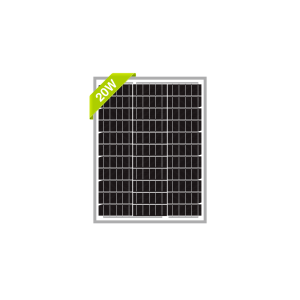

20W 12V Monocrystalline Solar Panel

Description

Bayankala’s 20W 12V Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, house door light and many other small off-grid applications.

NEW Design

Smaller in size, same output, higher efficiency compared with other brands.

Key Features

• 20W/12V monocrystalline high-efficiency solar panel
• High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
• Nominal 12V DC for standard output

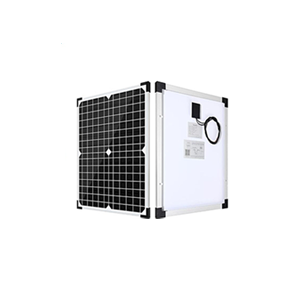

• Heavy-duty anodized frame with pre-drilled holes for mounting
• Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa)
• High-transparent, low iron tempered glass
• Durable TPT back sheet – dissipates heat to insure better panel performance and lifespan
• Pre-attached 3ft wire with bare ends

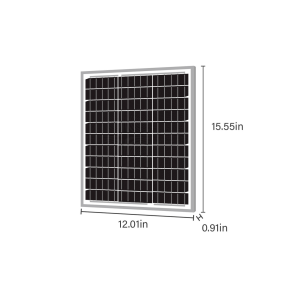

• Product dimensions: 395 x 305 x 23mm (15.55 x 12.01 x 0.91 in)
• 5-year workmanship warranty

Installation

• Easy installation and handling for various applications.
• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
• Compatible with on-grid and off-grid inverters.

Specifications

Product Code             BK20M

Maximum power (Pmax)    20W

Voltage at Pmax (Vmp)     19.08V

Current at Pmax (Imp)      1.05A

Open-circuit voltage (Voc)   22.35V

Short-circuit current (Isc)    1.12A

Temperature coefficient of Voc    -(80±10)mV/°C

Temperature coefficient of Isc    (0.05±0.015)%/ °C

Temperature coefficient of power   -(0.5±0.05)%/ °C

NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s)  45±2°C

Operating temperature   -40°C to 85°C

Power tolerance   ± 3%
