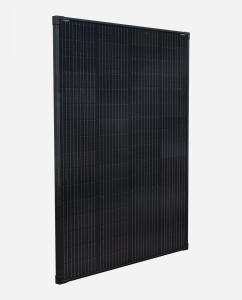

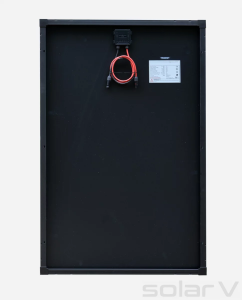

170W 18V Solar panel
170W 18V Solar panel
Bayankala's 170W 18V Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, house door light and many other small off-grid applications.
Specification

BK-170 cell specification

  • Maximum STC power (Pmax): 170 W
  • Optimum operating voltage (Vmp): 18.94 V
  • Optimal operating current (Imp): 8.98 A
  • Open circuit voltage (Voc): 22.62 V
  • Short circuit current (Isc): 9.76 A
  • Efficiency of solar cells: 19,79%
  • The efficiency of the solar module: 17,3%
  • Operating temperature: -40°C to 85°C
  • Maximum operating voltage: 1000 V DC
  • Maximum fuse value: 15 A
  • Power tolerance: 0~ + 3%
  • Nominal operating temperature of the cell (NOCT): 47°C +/- 2°C
  • Pmax temperature coefficient: -0.47%/°C
  • VOC temperature coefficient: -0,346%/°C
  • ISC temperature coefficient: +0.036%/°C
  • Solar cell: Polycrystalline 156 x 156
  • Number of cells: 36 (4 x 9)
  • Front glass: 3.2 mm hardened glass
  • Frame: anodized aluminium frame
  • Junction box: PV
  • Connectors: Plug and socket
  • Dimensions: 1485 x 668 x 30 mm
  • Weight: 11,6 kg



Applicable Scenarios
