160 Watt  165Watt Solar Panel

Description

Features

• 18 busbar solar cell configuration
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug-and-play junction box
• Industry-standard quick-connect cables work in series or parallel
• Certified to withstand challenging environmental conditions
• Excellent low-light performance on cloudy days, mornings, and evenings

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters

Built-in Components

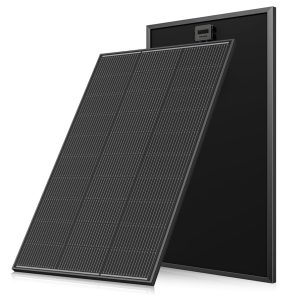

• BAYANKALA SOLAR 160 watt monocrystalline solar panel
• Panel leads (pair): 3 feet each
• IP65 rated waterproof junction box
• IP67 rated waterproof solar connectors
• Bypass diodes built-in the junction box

Model Specifications

Power at STC(Pm): 160W

Maximum power voltage(Vpm): 18.9V

Maximum power current(Ipm): 8.47A

Open circuit voltage(Voc): 22.9V

Short circuit current(Isc): 8.68A

Tolerance: ±5%

Module efficiency: 16.5%

Standard test conditions: Temperature 25C, Irradiance 1000W/m2, AM=1.5

Maximum system voltage: 600V DC | Series fuse rating |15A

Temperature coefficient: Isc:0.05%/K | Voc:-0.36%/K  | Pmax:-0.46%/K
