Features

• 18 busbar solar cell configuration
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug-and-play junction box
• Industry-standard quick-connect cables work in series or parallel
• Certified to withstand challenging environmental conditions
• Excellent low-light performance on cloudy days, mornings, and evenings

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters

Built-in Components

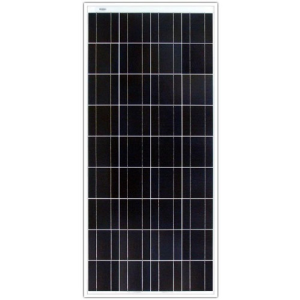

• BAYANKALA SOLAR 150 watt monocrystalline solar panel
• Panel leads (pair): 3 feet each
• IP65 rated waterproof junction box
• IP67 rated waterproof solar connectors
• Bypass diodes built-in the junction box

Specifications:

ModelBK-M150

Maximum Power (Pmax)：150W

Maximum Power Voltage (Vmp)：17.5 V

Maximum Power Current (Imp)：8.57 A

Open Circuit Voltage (Voc)：21.8 V

Short Circuit Current (Isc)：8.94 A

Maximum System Voltage (Vmax)：1000VDC

Maximum Series Fuse Rating：15A

Temperature Range：-40 ~ +185°F

Weight：18.1 lb

Dimensions：44.0 in x 26.4 in x 1.2 in
