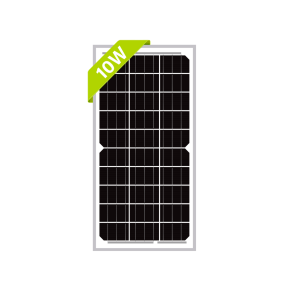

10W 12V Monocrystalline Solar Panel

Description

Bayankala’s 10W 12V Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, house door light and many other small off-grid applications.

Key Features

• 10W/12V monocrystalline solar panel
• High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
• Nominal 12V DC for standard output
• Heavy-duty anodized frame with pre-drilled holes for mounting
• High-transparent, low iron tempered glass
• Durable TPT back sheet – dissipates heat to insure better panel performance and lifespan
• Pre-attached 3ft wire with bare ends

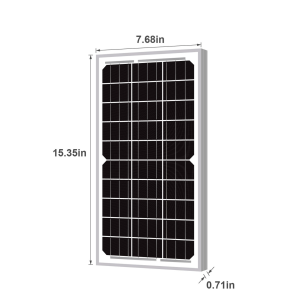

• Product dimensions: 390 x 195 x 18mm (15.35 x 7.68 x 0.71 in)
• Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa)
• 5-year workmanship warranty

Installation

• Easy installation and handling for various applications.
• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
• Compatible with on-grid and off-grid inverters.

Specifications

Product Code             BK10M

Maximum power (Pmax)  10W

Voltage at Pmax (Vmp)    17.37V

Current at Pmax (Imp)    0.69A

Open-circuit voltage (Voc)     20.04V

Short-circuit current (Isc)       0.73A

Temperature coefficient of Voc    -(80±10)mV/°C

Temperature coefficient of Isc     (0.065±0.015)%/ °C

Temperature coefficient of power    -(0.5±0.05)%/ °C

NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s)    47±2°C

Operating temperature     -40°C to 85°C

Maximum system voltage     1000V DC

Power tolerance    ± 3%

Maximum Series Fuse Rating  5A
