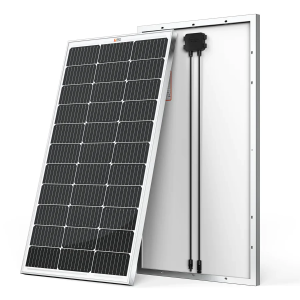

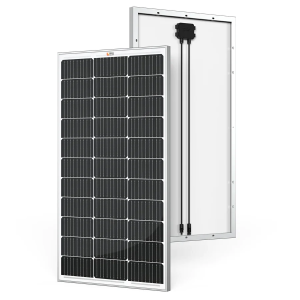

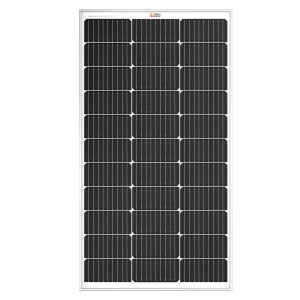

100 Watt Solar Panel

The Bayankala 100 is the perfect option for any off-grid application. Ideal for anything from RVs to cabins and built to withstand the toughest climates.

Features

• 12V off-grid solar panel.
• 0~+5W guaranteed positive power output.
• IP 65 or IP 67 rated.

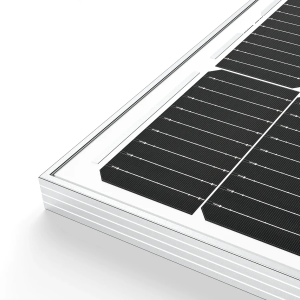

• Built with strong tempered glass and aluminum frame.
• Certified to withstand challenging environmental conditions.
• Excellent low light performance on cloudy days, mornings, and evenings.

Installation

• Easy installation and handling for various applications.
• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
• Compatible with on-grid and off-grid inverters.

Warranty

• 5-year output warranty.

Built-in Components

• Panel Leads (Pair): 12AWG, 3FT each
• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

Specifications:

Model Type ：BK– M100

Maximum Power (Pmax)：100W

Maximum Power Voltage (Vmp)：18.6V

Maximum Power Current (Imp)：5.38A

Open Circuit Voltage (Voc)：22.8V

Short Circuit Current (Isc)：5.78A

Maximum System Voltage (Vmax)：1000VDC

Weight： 15 lbs

Dimensions： 39.0 in x 21.3 in x 1.2 in
