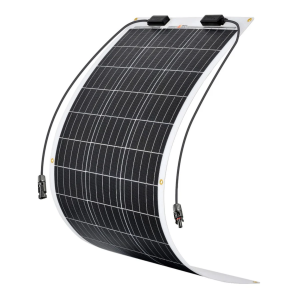

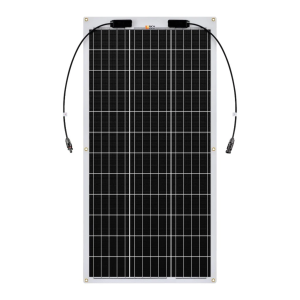

100 Watt ETFE Semi-Flexible Solar Panel

Low-weight Areal weight 2.9 kg/m 2, Less than 30% of traditional glass-based solar modules Thin Thickness: 1.8 mm (junction box not included) Only 50% of traditional glass-based solar modules Flexible Smallest bending radius of 0.3 m, No cell cracks, no power losses High-strength World's only flexible C-Si solar module which canendure hail- strike without cell cracks and power losses Easy-to-install No need for PV support bracket modules can be directly bonded to installation surface by weather-resistant glue Aesthetics Module's surface and texture can be customized to meet aesthetic requirements

Inquire +Contrast

Specification

The Bayankala 100 Watt ETFE Semi-Flexible Solar Panel shines in the dynamic environments that adventures take you.

ETFE coating ensures that your new panel will withstand temperature extremes, snow, rain, or whatever else you throw at it. Compact, lightweight, high power, and flexibility means you can mount it almost anywhere on your camper, van, or boat.

Features

Lightweight: 4.8 lbs

Thickness: 0.1 in

Flexible up to 30 degrees

Stainless steel grommets in the panel

Easy and low-cost installation

One year warranty

Ideal for

Vans, trailers, overlanders, boats

Utility service vehicles

Curved roofs

Outdoors

Backup power

Built-in Components

100-watt flexible monocrystalline solar panel

Panel leads (pair): 24 in each

IP67 Rated waterproof junction box

IP67 Rated waterproof solar connectors

Bypass diodes built into the junction box

Specifications

Maximum Power (Pmax): 100W

Maximum Power Voltage (Vmp): 18.9V

Maximum Power Current (Imp): 5.29A

Open Circuit Voltage (Voc): 22.8V

Short Circuit Current (Isc): 5.59A

Maximum System Voltage (Vmax): 1000VDC

Temperature Range: -40 °F ~ +185°F

Weight: 4.8 lb

Dimensions: 40.6 x 21.3 x 0.1(0.8) in

Applicable Scenarios

solar panel

We provide many Solar Power solutions, Home Energy Storage, Industrial Storage, Portable Storage. Solar panel of customized , 10W 20W 50W 60W 100W 130W 140W 160W 170W 180W 200W 250W 300W 340W 380W 400W, And regular Black 400W , 450W , 500W ,590W 600W 615W
Industrial Solar storage

Commercial Solar Services Solar energy helps your business meet power needs and embrace sustainability. BAYANKALA SOLAR offers a comprehensive range of commercial solar systems. Our services include: -Commercial Solar Installation Whether it’s integrating solar power into new construction projects or retrofitting existing buildings, we have the expertise to design and install a solar system that maximizes energy generation and savings. -Commercial Solar Carports Our solar carports provide shade for vehicles and generate clean energy. Benefit from reduced electricity costs while providing an eco-friendly amenity for employees and customers at your commercial property. -Solar Battery Storage Ensure continuous operation during outages, reduce peak charges, and take advantage of net metering with a battery system.
Home Solar System

Solar panels are the stars of the residential solar system, gleaming on the rooftop as they tell the world, or at least the neighborhood, that this homeowner cares enough about the environment to ease the household’s carbon footprint while smartly lowering electric bills.
